AWS NAT Instance And Configuration

AWS NAT Instance And Configuration

March 29, 2021 / Eternal Team

You can use a NAT instance in a public subnet in your VPC to enable instance in the private subnet to initiate outbound IPv4 traffic to the internet or other AWS services. But prevent the instance from receiving inbound traffic initiated by someone on the internet.

NAT is not supported for IPv4 traffic use on egress only internet gateway.

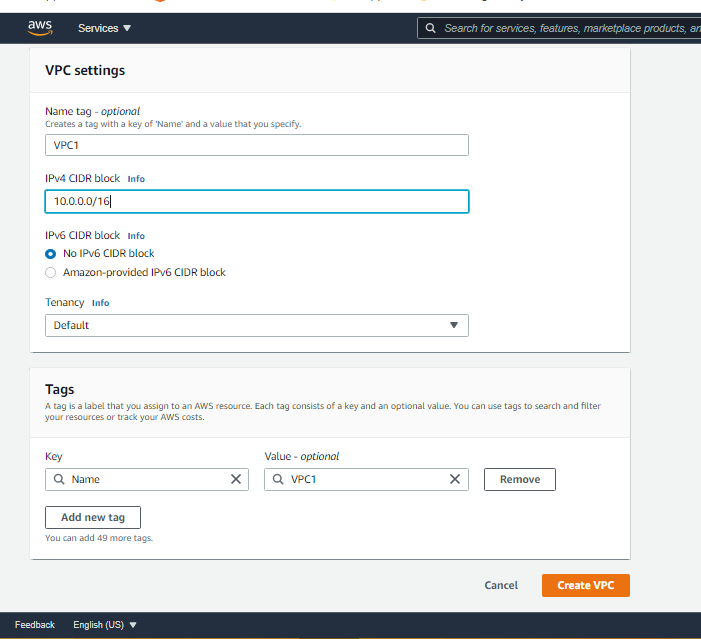

Step 1: Create VPC (VPC1)

Step 2: Create a public subnet using the VPC.

Step 3: Create a private subnet using the VPC.

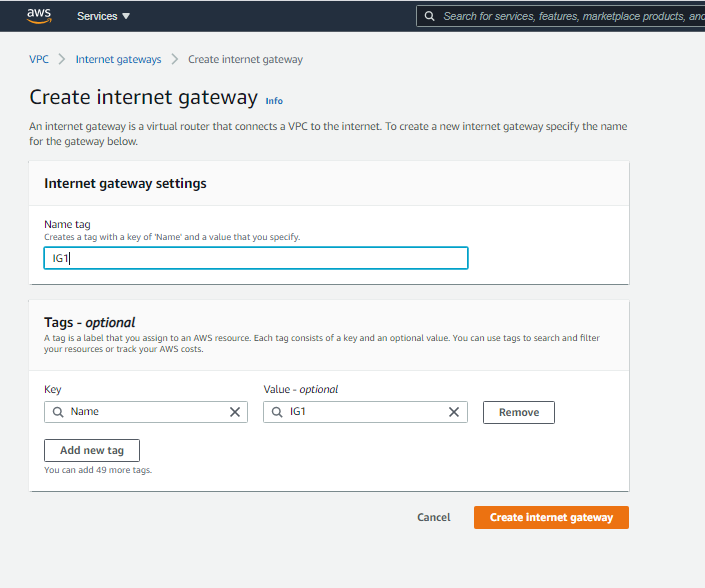

Step 4: Create the internet gateway and attach to the newly created VPC (VPC1)

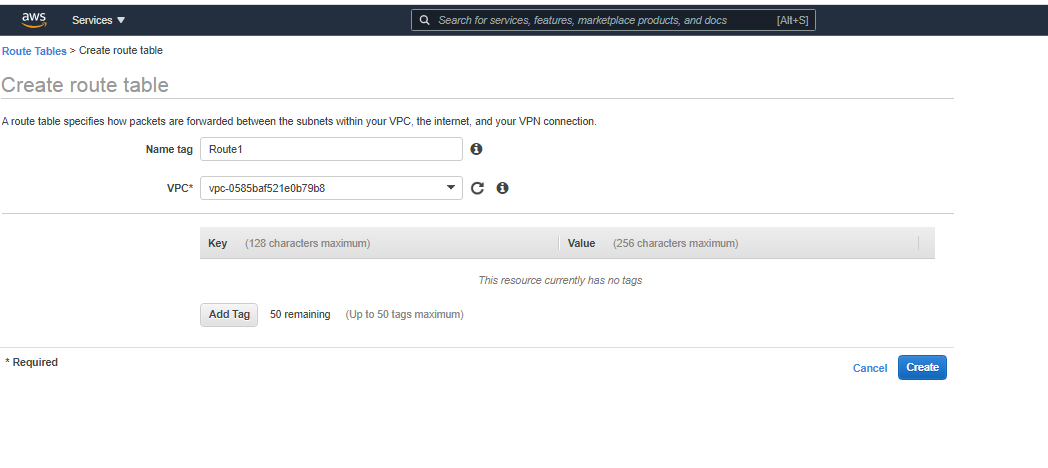

Step 5: Create the routeing table.

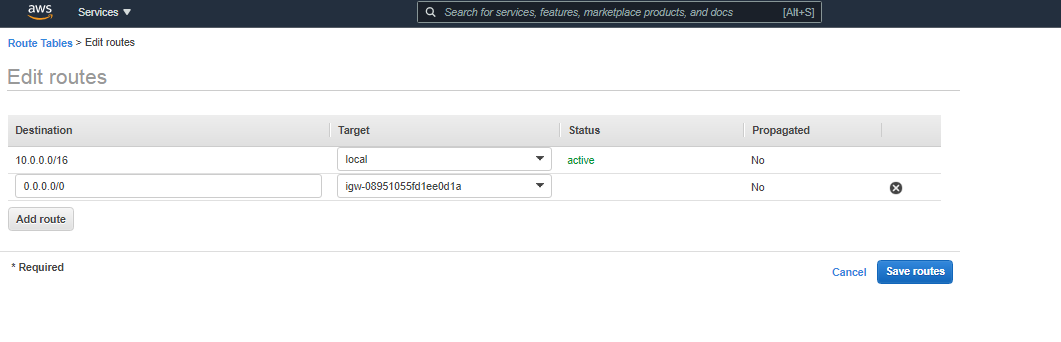

Step 6: Edit the route table and attache IG to it.

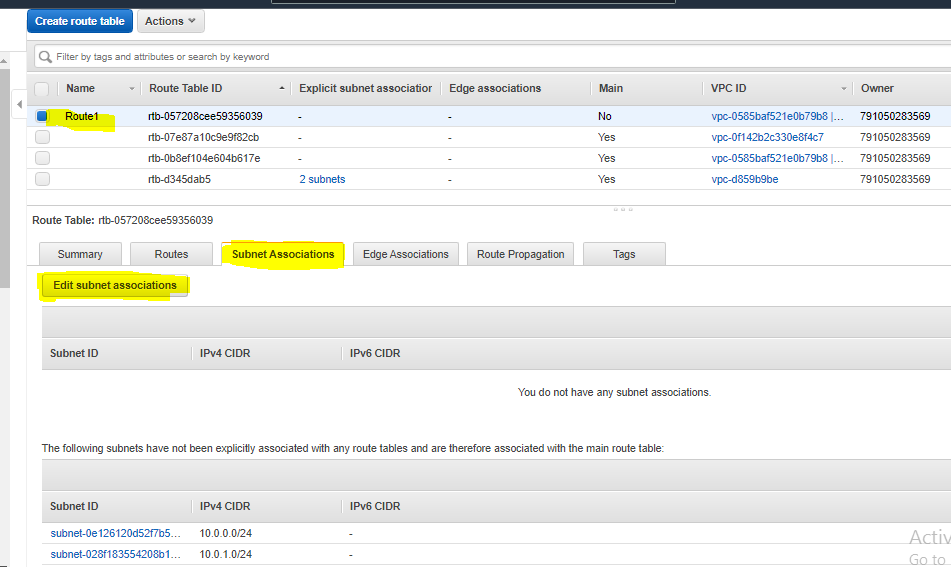

Step 7: Edit the subnet associations and select public subnet.


Step 8: Launch NAT instance.

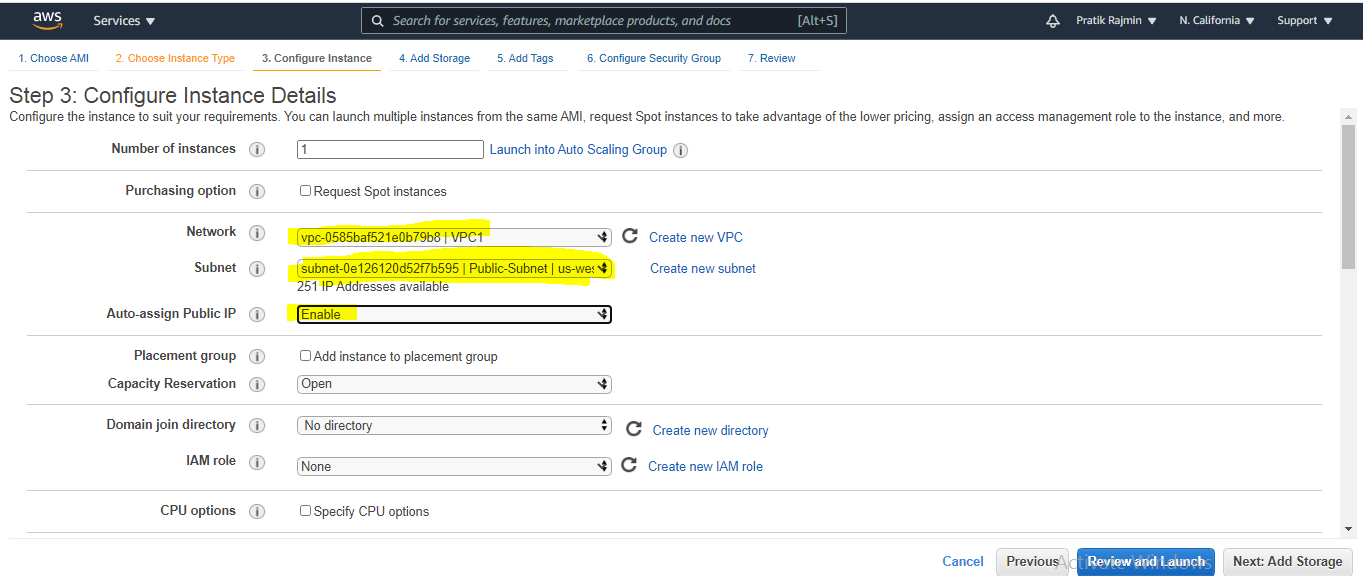

Step 9: Select your VPC and public subnet.

Step 10: Select the default option.

Step 11: Launch one Linux instance.

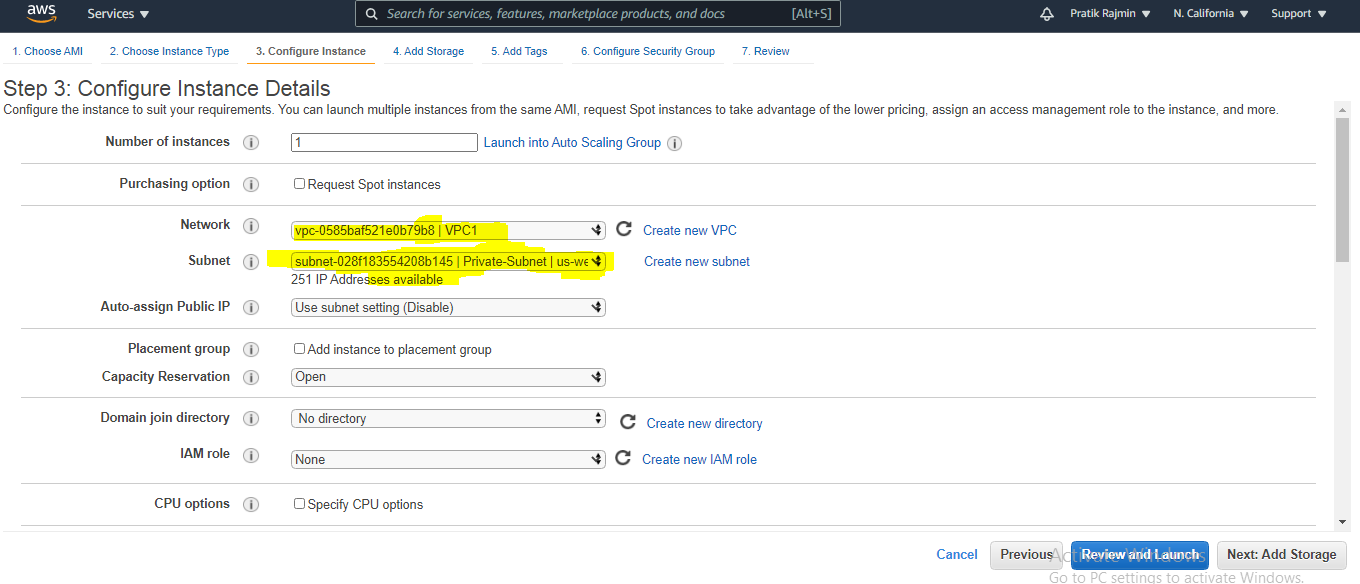

Step 12: Select the private subnet.

Step 13: Now connect the NAT instance and try to access the internet. You are able to access it. Create a .pem file and provide the necessary permissions. And now can have the access to the private Linux instance.
